N Scale Modular - the "big" Storage Yards

The East and West Storage Yards are essentially identical and have been through two previous iterations before they achieved their current form. Details of the electrical operation of the yards is on the layout DCC page.

In their current form, after a 1:2 module and a 2:4 module, a pair of wedge-shaped boards flare the yard fans wider than they used to and then another pair bring the 6:6 staging modules parallel to each other. We now have 6:6 staging modules 2' and 4' in length which can be used separately or together to make yards of varying sizes.

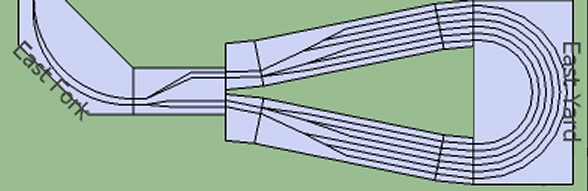

The current tiny storage loop configuration
Tiny, without 6:6 boards.

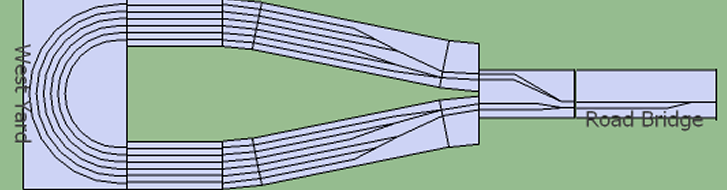

The current short storage loop configuration
Short, with 2' 6:6 boards.
The current standard storage loop configuration
Standard, with 4' 6:6 boards.

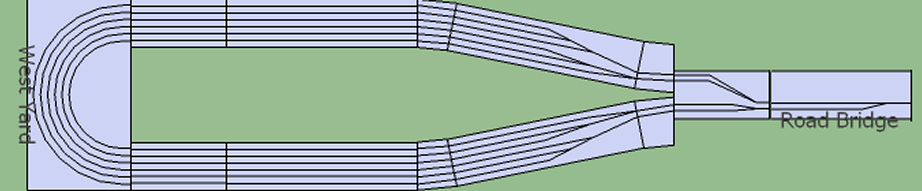

The current long storage loop configuration
Long, with 2' and 4' 6:6 boards.

This makes the yards slightly fatter (and also provides a little more storage as the there is a few more inches of track on the wedges).

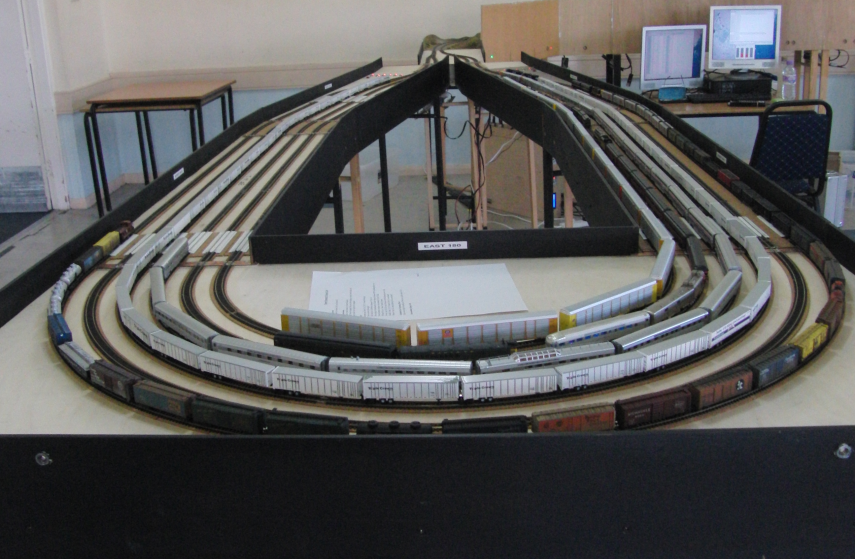

The east yard looking towards the yard throat

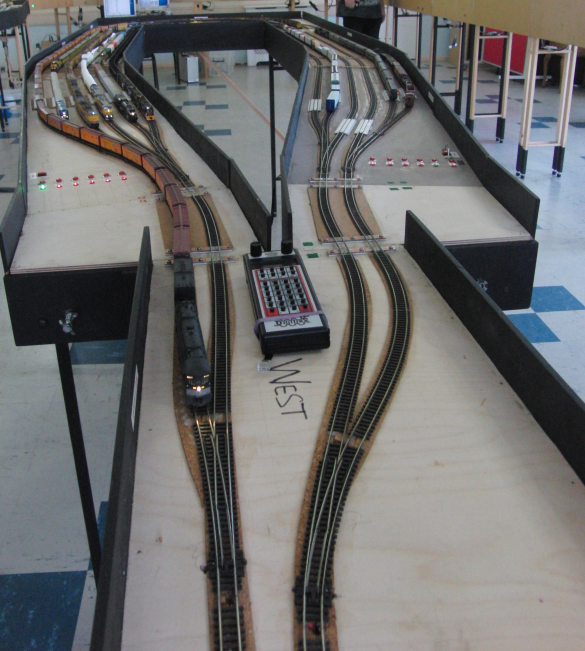

The west yard looking over the yard throat

Each yard track is a slighly different length, because of the various curves involved:

Track # No 6:6 modules2' 6:6 modules4' 6:6 modules2' & 4' 6:6 modules
1 (outermost) 12'   3"16'   3"20'   3"24'   3"
2  11'   9"15'   9"19'   9"23'   9"
3  12'   8"16'   8"20'   8"24'   8"
4  12'   2"16'   2"20'   2"24'   2"
5  10'   6"14'   6"18'   6"22'   6"
6 (innermost)  9' 11"13' 11"17' 11"21' 11"
Total  69'   3"93'   3"117'   3"141'   3"

Of course, this is one yard! 33' feet in N-scale equals one scale mile so all the tracks in the two yards total between 4.2 and 8.6 scale miles of off-layout storage for trains.
